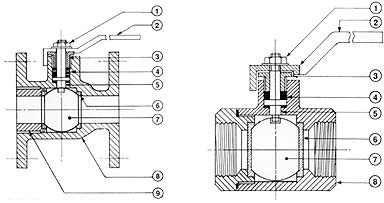

ONE PIECE DESIGN
CAT NO. : PVT / BVSF / 003

S.No.
PART
MATERIAL OF CONSTRUCTION
1
Handle Nut
M S Plated / SS
2
Handle
M S Plated / SS
3
Gland Nut
CI / MS / SS / GM
4
Packing
Teflon PTFE
5
Spindle
SS304 / SS316
6
Seat
Teflon PTFE
7
Ball
SS304 / SS316
8
Body
CI / MS / SS / GM
D I M E N S I O N S (in mm)
15
20
25
32
40
50
65
80
100
Screwed type
Face to face (CI)
70
85
95
105
115
130
150
165
200
Face to face (GM,SS,MS)
70
80
90
100
105
120
140
160
-
Flanged Type
Face to face (CI)
90
100
115
127
140
152
165
190
229
Face to face (GM,SS,MS)
75
85
95
105
115
130
153
165
-
Flange dia.
95
101
114
120
133
152
165
184
216
D E T A I L S
Description
1 piece ball valve, lever operated full port with teflon PTFE seats, gland seat and adopter seat, blow out proof stem.
MOC (body)
CI / CS / GM / SS / Alloy20
MOC (parts)
SS304 / SS316 / Alloy20
End Conn.
Screwed / Triclover / Flange / Wafer Design
Flow Area
Full Port / Regular bore
On Request
Gear op. / Rotary Actuatory, Chain op.
Specialize
Steam jacket,
High temp. - 250°C to + 250°C



T E S T    P R E S S U R E (Hydrostatic - kg/cm2)
Rating
Body
Seat
125#
21
16
150#
31
21
300#
77
55
600#
157
105
800#
210
154

CI = Cast Iron  CS = Cast Steel  MS = Mild Steel  SS = Stainless Steel(304/316)  GM = Gun metal(copper alloy)
